U42BLS Series |
|
 |
| |
| |
U42BLS41A40 |
U42BLS61A40 |
U42BLS100A40 |
|
|
Motor poles |
8 |
8 |
8 |
|
|
Phase |
3 |
3 |
3 |
|
|
Rated Voltage |
24 |
24 |
24 |
VDC |
|
Rate speed |
4000 |
4000 |
4000 |
rpm |
|
Rated torque |
0.063 |
0.125 |
0.25 |
N.m |
|
Rate power |
26 |
52 |
105 |
W |
|
PeaK torque |
0.19 |
0.38 |
0.75 |
N.m |
|
PeaK Current |
5.4 |
10.6 |
20 |
A |
|
Torque constant |
0.035 |
0.036 |
0.036 |
N.m/A |
|
Voltage constant |
3.7 |
3.8 |
3.8 |
V/Krpm |
|
Rotor Inertia |
24 |
48 |
96 |
g.cm2 |
|
Motor weight |
0.3 |
0.45 |
0.8 |
Kg |
|
L Motor length |
41 |
61 |
100 |
mm |
|
|
|
Winding Type |
DELTA |
|
Hall Electrical Angle |
120 Deg. |
|
Axial Tilting |
0.025mm |
|
Axial Circle Run-Out |
0.02mm@450g |
|
Axial End Run-Out |
0.08mm@450g |
|
Radial Load |
20N@Flange15mm |
|
Axial Load |
10N |
|
Dielectric Strength |
500VDC, 1min. |
|
Flange Resistance |
>100Mohms, 500VDC |
|
|
|
Code |
Color |
Cert |
Function |
|
1 |
Red |
UL1007
AWG26 |
Hall Vcc |
|
2 |
Blue |
Hall U |
|
3 |
Green |
Hall V |
|
4 |
White |
Hall W |
|
5 |
Black |
Hall GND |
|
6 |
Yellow |
UL1007
AWG20 |
Phase U |
|
7 |
Red |
Phase V |
|
8 |
Black |
Phase W |
|
| |
|

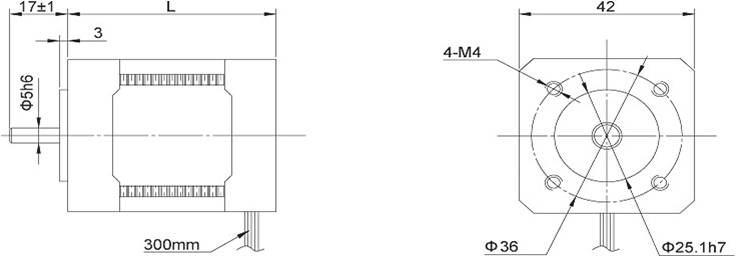

Dimensional Drawing |
| |
|
 |
| |
|
|
|
| |
|
