◎ Frameless DD Motor Series


　
　

U60DD60

U60DD200

U76DD260

U76DD350

U129DD700

U129DD900

 　
Poles 16 16 16 16 16 16 　
Rated Voltage 48 48 48 48 48 48 V
Rated Power 60 200 260 350 700 900 W
Rated Current 2.4 7 8.8 13.2 20 28 A
Max Instance Current 7.2 25 27 40 50 50 A
Rated Torque 0.19 0.63 0.8 1.67 3.33 5.75 N.m
Max Instance Torque 0.57 1.89 2.4 5.01 7 10 N.m
Rated Speed 3000 3000 2600 2000 2000 1500 rpm
Max Speed 5000 4500 4500 3000 3000 2500 rpm
Rotor Inertia 1.88x10^-5 3.36x10^-5 4.05x10^-5 7.52x10^-5 3.61x10^-4 9.61x10^-4 kg.m2
Encoder 24 bits absolute 24 bits absolute 24 bits absolute 24 bits absolute 24 bits absolute 24 bits absolute P/R
　

Dimension

 　 　 　 　 　 　 　
D1 60 60 76 76 129 129 　
D2 27 27 36 36 56 56 　
D3 29 41 31 46 30 53 　
D4 13 25 15 30 13 35 　
D5 14 26 16.5 32 15 37 　
　
　

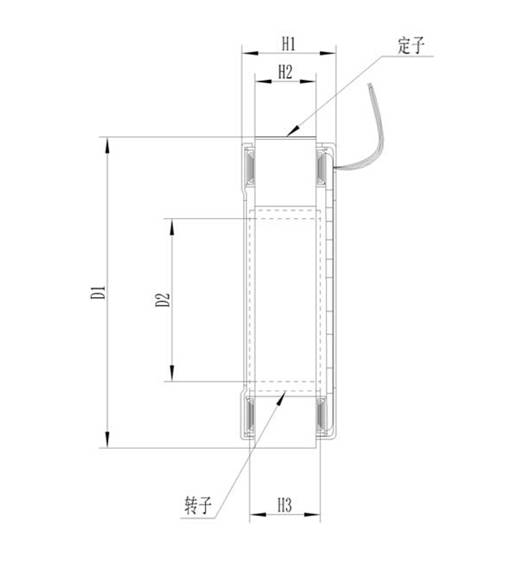

  Dimensional Drawing
　

　
　
　
　
　 　
　 　
　
