U63BL24 Series
U63BL24-40A
U63BL24-40B
U63BL24-100A
U63BL24-100B
Rated Voltage
24
24
24
24
VDC
Rated Power
40
40
100
100
W
Rated Speed
120
220
120
163
rpm
Rated Torque
180
180
500
500
Ncm
Rated Current
5
5
9
10.5
A
No Load Speed
150
290
150
290
rpm
No Load Current
1.8
1.4
1.2
1.5
A

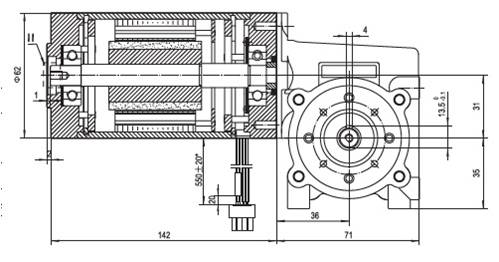

Dimensional Drawing
