◎ U80BLS Series |
|
 |
| |
| |
U80BLS85C30 |
U80BLS110D30 |
U80BLS115D30 |
|
|
Motor poles |
8 |
8 |
4 |
|
|
Phase |
3 |
3 |
3 |
|
|
Rated Voltage |
48 |
48 |
48 |
VDC |
|
Rate speed |
3000 |
3000 |
3000 |
rpm |
|
Rated torque |
0.96 |
1.91 |
3.18 |
N.m |
|
Rated current |
7.8 |
12.5 |
21 |
W |
|
Rate power |
300 |
600 |
1000 |
N.m |
|
PeaK torque |
2.8 |
5.7 |
9.5 |
A |
|
PeaK Current |
23.5 |
37 |
63 |
N.m/A |
|
Torque constant |
0.122 |
0.153 |
0.153 |
V/Krpm |
|
Voltage constant |
8.5 |
10 |
10 |
g.cm2 |
|
Rotor Inertia |
0.52 |
0.85 |
1.33 |
Kg |
|
Motor weight |
1.7 |
2.8 |
3.5 |
mm |
|
L Motor length |
85 |
110 |
140 |
mm |
|
|
|
Winding Type |
YWE |
|
Hall Electrical Angle |
120 Deg. |
|
Axial Tilting |
0.025mm |
|
Axial Circle Run-Out |
0.02mm@450g |
|
Axial End Run-Out |
0.08mm@450g |
|
Radial Load |
200N@Flange15mm |
|
Axial Load |
50N |
|
Dielectric Strength |
500VDC, 1min. |
|
Flange Resistance |
>100Mohms, 500VDC |
|
|
|
Code |
Color |
Cert |
Function |
|
1 |
Red |
UL1007
AWG26 |
Hall Vcc |
|
2 |
Blue |
Hall U |
|
3 |
Green |
Hall V |
|
4 |
White |
Hall W |
|
5 |
Black |
Hall GND |
|
6 |
Yellow |
UL1007
AWG20 |
Phase U |
|
7 |
Red |
Phase V |
|
8 |
Black |
Phase W |
|
| |
|

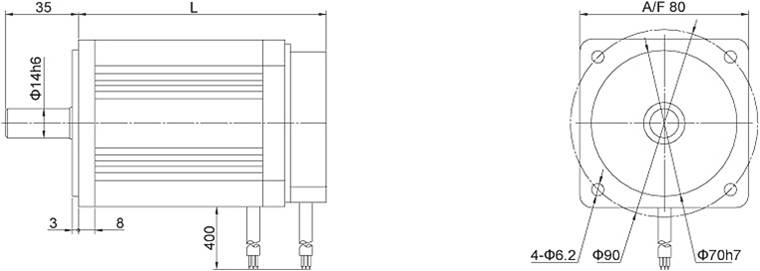

Dimensional Drawing |
| |
|
 |
| |
|
|
|
| |
|
