◎ U130BLS Series |
|
 |
| |
| |
U130BLS115G30 |
U130BLS120G30 |
U130BLS140G30 |
U130BLS165G30 |
U130BLS190G20 |
|
|
Motor poles |
10 |
10 |
10 |
10 |
10 |
|
|
Phase |
3 |
3 |
3 |
3 |
3 |
|
|
Rated Voltage |
310 |
310 |
310 |
310 |
310 |
VDC |
|
Rated current |
2.8 |
3.8 |
5.7 |
8.5 |
9.5 |
|
|
Rate speed |
3000 |
3000 |
3000 |
3000 |
2000 |
rpm |
|
Rated torque |
2.39 |
3.18 |
4.77 |
7 |
11.94 |
N.m |
|
Rate power |
0.75 |
1 |
1.5 |
2.2 |
2.5 |
N.m |
|
PeaK torque |
7.1 |
9.5 |
14 |
21 |
35 |
A |
|
PeaK Current |
8.5 |
11.5 |
17 |
25 |
28 |
N.m/A |
|
Torque constant |
0.85 |
0.84 |
0.82 |
0.83 |
1.25 |
V/Krpm |
|
Rotor Inertia |
5.9 |
7.4 |
9.7 |
13.5 |
19.7 |
Kg |
|
Motor weight |
6.1 |
6.5 |
7 |
8.5 |
11 |
mm |
|
L Motor length |
115 |
120 |
140 |
165 |
190 |
mm |
|
|
|
Winding Type |
YWE |
|
Hall Electrical Angle |
120 Deg. |
|
Axial Tilting |
0.025mm |
|
Axial Circle Run-Out |
0.02mm@450g |
|
Axial End Run-Out |
0.08mm@450g |
|
Radial Load |
480N@Flange25mm |
|
Axial Load |
150N |
|
Dielectric Strength |
1500VDC, 1min. |
|
Flange Resistance |
>100Mohms, 500VDC |
|
|
|
Code |
Color |
Cert |
Function |
|
1 |
Red |
UL1007
AWG26 |
Hall Vcc |
|
2 |
Blue |
Hall U |
|
3 |
Green |
Hall V |
|
4 |
White |
Hall W |
|
5 |
Black |
Hall GND |
|
6 |
Yellow |
UL1007
AWG20 |
Phase U |
|
7 |
Red |
Phase V |
|
8 |
Black |
Phase W |
|
| |
|

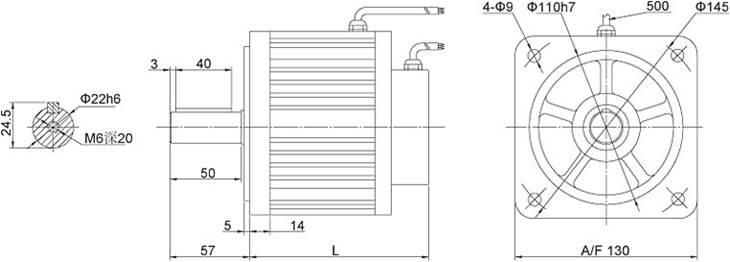

Dimensional Drawing |
| |
|
 |
| |
|
|
|
| |
|
