HDM14-60 Harmonic&Frameless
Motor Integraded Actuator |
|
 |
| |
|
HDM14-60 |
|
Ratio |
1:50 |
1:80 |
1:100 |
|
|
Max Start/Stop Torque |
23 |
29 |
34 |
N.m |
|
Average Input Speed
|
3500 |
rpm |
|
Max Instance Torque
|
43 |
57 |
66 |
N.m |
|
Back Clearance |
<=10 |
Arc sec |
|
Designed Life
|
10000 |
15000 |
15000 |
H |
|
Rated Torque |
7.6 |
12.1 |
13.5 |
N.m |
|
Rated Speed
|
60 |
37.5 |
30 |
rpm |
|
Angular Precision (one way)
|
1' |
40' |
40' |
|
|
Angular Precision (both way)
|
2.5' |
1.5' |
1' |
|
|
Output Load
|
Main Bearing Moment Load |
|
MB(Bending moment) |
Instant Allowable Value |
Mb |
80 |
N.m |
|
Ft |
560 |
N.m |
|
Fa |
560 |
N |
|
Ft(Radial Force) |
Start&Stop Allowable Value |
Mb |
40 |
N.m |
|
Ft |
320 |
N.m |
|
Fa |
320 |
N |
|
Fa(Axial Force) |
Designed Value |
Mb |
20 |
N.m |
|
Ft |
180 |
N.m |
|
Fa |
180 |
N |
|
Encoder |
Absolute Value Encoder |
|
|
Singal Circle Resolution Ratio |
20bit 1048576 |
|
|
Multi-Crcle Resolution Ratio |
17bit 65536 |
|
|
Output Shaft Resolution Ratio |
52428800 |
83886080 |
104857600 |
|
|
Environment |
Working temp. 0~40°C,
Stock temp. -20~60°C,
Humidity 20%~80%RH,
No dust,metal powder, corrosive gas,
flammable gas, oil spray, |
|
|
| |
|
Frameless Motor Data |
|
IP Class |
IP54 |
|
|
Rated
Voltage |
48 |
V |
|
Rated Power |
60 |
W |
|
Rated Torque |
0.19 |
N.M |
|
Max Instance
Torque |
0.57 |
N.M |
|
Rated
Current |
2.4 |
A |
|
Max instance
Current |
2.7 |
A |
|
Rated Speed |
3000 |
rpm |
|
Max Speed
|
5000 |
rpm |
|
Poles |
16 |
|
|
Temperature
Class |
F |
|
|
|
|
| |
|

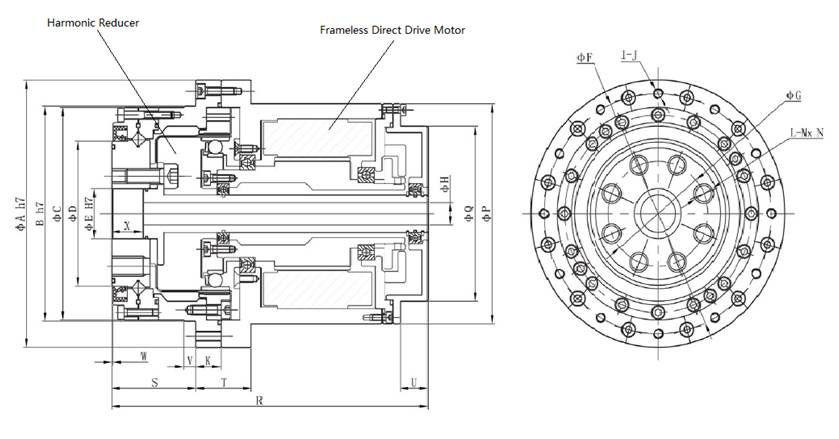

Dimensional Drawing |
| |
|
 |
| |
|
|
|
| |
|
