◎ U57BLS Series |
|
 |
| |
| |
U57BLS45B40 |
U57BLS55B40 |
U57BLS75B40 |
U57BLS95B40 |
U57BLS115B40 |
|
|
Motor poles |
8 |
8 |
4 |
4 |
4 |
|
|
Phase |
3 |
3 |
3 |
3 |
3 |
|
|
Rated Voltage |
24 |
24 |
36 |
36 |
36 |
VDC |
|
Rate speed |
4000 |
4000 |
4000 |
4000 |
4000 |
rpm |
|
Rated torque |
0.055 |
0.11 |
0.22 |
0.32 |
0.43 |
N.m |
|
Rate power |
23 |
46 |
92 |
133 |
180 |
W |
|
PeaK torque |
0.16 |
0.39 |
0.7 |
1 |
1.27 |
N.m |
|
PeaK Current |
3.5 |
6.8 |
11.5 |
16.5 |
20.5 |
A |
|
Torque constant |
0.053 |
0.063 |
0.063 |
0.063 |
0.063 |
N.m/A |
|
Voltage constant |
5.6 |
6.6 |
6.6 |
6.6 |
6.6 |
V/Krpm |
|
Rotor Inertia |
30 |
75 |
119 |
173 |
230 |
g.cm2 |
|
Motor weight |
0.25 |
0.5 |
0.75 |
1 |
1.25 |
Kg |
|
L Motor length |
45 |
55 |
75 |
95 |
115 |
mm |
|
|
|
Winding Type |
DELTA |
|
Hall Electrical Angle |
120 Deg. |
|
Axial Tilting |
0.025mm |
|
Axial Circle Run-Out |
0.025mm@450g |
|
Axial End Run-Out |
0.08mm@450g |
|
Radial Load |
75N@Flange15mm |
|
Axial Load |
15N |
|
Dielectric Strength |
500VDC, 1min. |
|
Flange Resistance |
>100Mohms, 500VDC |
|
|
|
Code |
Color |
Cert |
Function |
|
1 |
Red |
UL1007
AWG26 |
Hall Vcc |
|
2 |
Blue |
Hall U |
|
3 |
Green |
Hall V |
|
4 |
White |
Hall W |
|
5 |
Black |
Hall GND |
|
6 |
Yellow |
UL1007
AWG20 |
Phase U |
|
7 |
Red |
Phase V |
|
8 |
Black |
Phase W |
|
| |
|

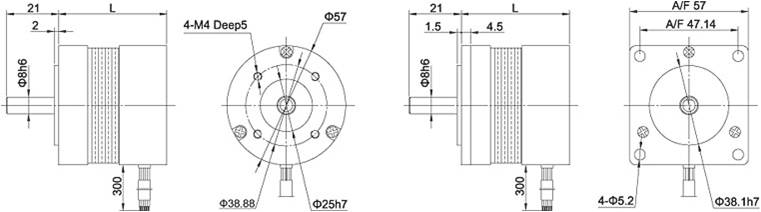

Dimensional Drawing |
| |
|
 |
| |
|
|
|
| |
|
