U63ZY Brushed Series |
|
 |
|
|
|
|
U63ZY24-50
|
U63ZY40-50
|
U63ZY48-50
|
|
|
Rated Voltage
|
24
|
40
|
48
|
VDC
|
|
Rated Speed
|
3300
|
3500
|
3300
|
rpm
|
|
Rated Torque
|
14
|
13.3
|
14
|
Ncm
|
|
Rated Current
|
2.8
|
1.7
|
1.4
|
A
|
|
Friction Moment
|
2
|
2
|
2
|
Ncm
|
|
No
Load Speed
|
3600
|
3800
|
3600
|
rpm
|
|
Torque Constant
|
6.0
|
9.8
|
12.2
|
Ncm/A
|
|
Stall Torque
|
124
|
142
|
144
|
Ncm
|
|
Rotor Resistance
|
0.89
|
2.50
|
3.65
|
Ω
|
|
Motor Resistance TBD
|
1.15
|
2.80
|
4.05
|
Ω
|
|
Motor Inductance TBD
|
2.1
|
5.5
|
8.9
|
Mh
|
|
Start Current
|
20.80
|
14.50
|
11.85
|
A
|
|
No
Load Current
|
0.36
|
0.22
|
0.18
|
A
|
|
Demagnetization Current
|
24
|
16
|
12
|
A
|
|
Weight
|
1.2
|
1.2
|
1.2
|
kg
|
|
|
|
| |
|

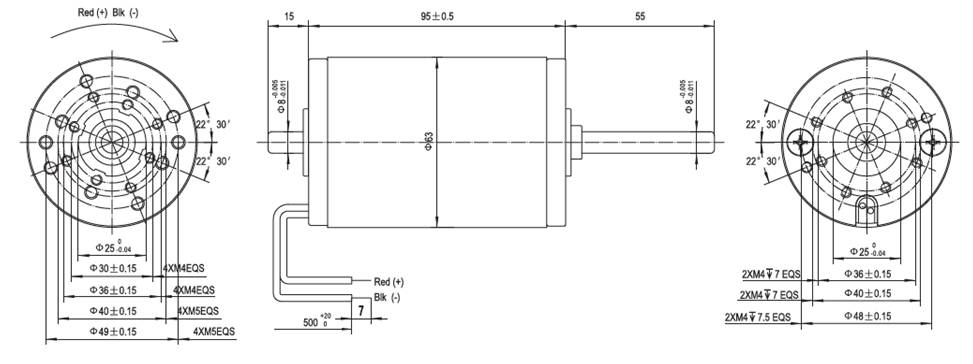

Dimensional Drawing |
| |
|
 |
|
|
◎
U63ZY Brushed Series |
|
|
| |
|
U63ZY24-95
|
U63ZY30-95
|
U63ZY40-100
|
U63ZY60-100
|
|
Rated Voltage
|
24
|
30
|
40
|
60
|
VDC
|
|
Rated Speed
|
3350
|
3350
|
3450
|
3350
|
rpm
|
|
Rated Torque
|
27
|
27
|
27
|
28.5
|
Ncm
|
|
Rated Current
|
5.2
|
4.2
|
3.2
|
2.2
|
A
|
|
Friction Moment
|
2
|
2
|
2
|
2
|
Ncm
|
|
No
Load Speed
|
3650
|
3650
|
3600
|
3600
|
rpm
|
|
Torque Constant
|
6.6
|
8.2
|
10.8
|
16
|
Ncm/A
|
|
Stall Torque
|
224
|
246
|
308
|
328
|
Ncm
|
|
Rotor Resistance
|
0.37
|
0.65
|
1.15
|
2.60
|
Ω
|
|
Motor Resistance TBD
|
0.7
|
1.00
|
1.4
|
2.9
|
Ω
|
|
Motor Inductance TBD
|
0.9
|
1.4
|
2.5
|
5.6
|
Mh
|
|
Start Current
|
34
|
30
|
28.5
|
20.5
|
A
|
|
No
Load Current
|
0.4
|
0.35
|
0.28
|
0.2
|
A
|
|
Demagnetization Current
|
33
|
25
|
20
|
13
|
A
|
|
Weight
|
1.6
|
1.6
|
1.6
|
1.6
|
kg
|
|
| |
|

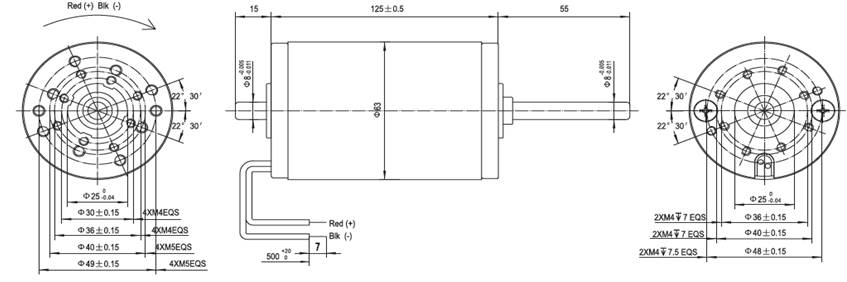

Dimensional Drawing |
| |
|
 |
| |
|
|
|
Encoder |
| |
|
Magnetic
Encoder with 2ppr,12ppr
Digital encoder with 100ppr,500ppr
|
| |
|
Worm Gearbox |
| |
|
Type
|
63JW
|
53JW
|
|
Ratio |
10:1,15:1 …
|
10:1,15:1 …
|
|
 |
| |
|
| |
| |
| |
| |
|
|
|
| |
|
