◎ U60BLS Series |
|
 |
| |
| |
U57BLS45B40 |
U57BLS55B40 |
U57BLS75B40 |
|
|
Motor poles |
8 |
8 |
4 |
|
|
Phase |
3 |
3 |
3 |
|
|
Rated Voltage |
24 |
24 |
24 |
VDC |
|
Rate speed |
3000 |
3000 |
3000 |
rpm |
|
Rated torque |
0.32 |
0.64 |
1 |
N.m |
|
Rated current |
5.3 |
10.5 |
8.2 |
W |
|
Rate power |
100 |
200 |
310 |
N.m |
|
PeaK torque |
0.96 |
1.92 |
3 |
A |
|
PeaK Current |
16 |
32 |
25 |
N.m/A |
|
Torque constant |
0.061 |
0.061 |
0.122 |
V/Krpm |
|
Voltage constant |
4.5 |
4.5 |
9 |
g.cm2 |
|
Rotor Inertia |
110 |
190 |
290 |
Kg |
|
Motor weight |
0.55 |
0.95 |
1.4 |
mm |
|
L Motor length |
75 |
95 |
115 |
mm |
|
|
|
Winding Type |
YWE |
|
Hall Electrical Angle |
120 Deg. |
|
Axial Tilting |
0.025mm |
|
Axial Circle Run-Out |
0.02mm@450g |
|
Axial End Run-Out |
0.08mm@450g |
|
Radial Load |
150N@Flange15mm |
|
Axial Load |
40N |
|
Dielectric Strength |
500VDC, 1min. |
|
Flange Resistance |
>100Mohms, 500VDC |
|
|
|
Code |
Color |
Cert |
Function |
|
1 |
Red |
UL1007
AWG26 |
Hall Vcc |
|
2 |
Blue |
Hall U |
|
3 |
Green |
Hall V |
|
4 |
White |
Hall W |
|
5 |
Black |
Hall GND |
|
6 |
Yellow |
UL1007
AWG20 |
Phase U |
|
7 |
Red |
Phase V |
|
8 |
Black |
Phase W |
|
| |
|

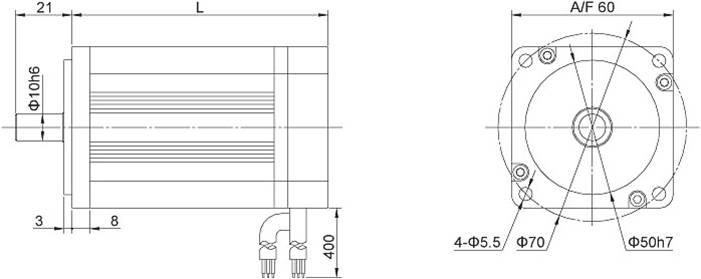

Dimensional Drawing |
| |
|
 |
| |
|
|
|
| |
|
